Month: August 2017

And then there was light …

I always liked the cornering light feature on my previous two cars, particularly when negotiating the steep drop at the end of our driveway after dark. It’s not a Mustang option, but my 2014 V6 Pony Edition has (had) amber corner markers in the right place on the bumper.

So, I started shopping for clear aftermarket lenses. I found lots of them for my model — so many, in fact, I was amazed nobody was touting them for cornering lights. Hm. Maybe for good reason, but I had to find out.

I bought fixtures and a pair of five-element LED lamps to replace the stock 194 size bulbs. eBay. Total cost, less than $22.

There are two ways that I know of to get into the space behind the bumper where the lampholders lurk. Look on YouTube for tutorials, but I can tell you (1) ingress through the wheel-well liner requires removal of 5 screws, and (2) the job took 1 hour 20 minutes, and (3) I scraped my arms bloody doing it.

After all that, I would have been disappointed if it didn’t work, but it did – kind of.

IMAG0917

Yes, the mod lights up the pavement in the right spot, but a road test revealed that the LED bulbs I bought aren’t bright enough to make a difference.

I may experiment with another bulb, but I’m not looking forward to sticking my arms in there again. And, I have to wonder if a brighter bulb might be too hot for the lamp holder. OEM cornering lamps only come on when the turn signals are operating, allowing use of a very bright bulb. The stock corner lights on a Mustang are on all the time.

I could wire a latching relay into the turn signal circuit, connect the corner markers to it, yada yada yada. I don’t think that’s going to happen. If you try this setup with a hot bulb, sufficient to throw useful illumination on the road, let us know if anything melts.

Did you try something cool recently? Tell us about it in the comments.

1

Waffled

My Waring WMK200 Belgian Waffle Maker quit. No lights, no heat … nothing.

It cost me $50 and it’s just out of warranty. Not cool, Waring. Wait … it IS cool, which is uncool.

Fortunately, I have experience with this issue.

It’s the thermal fuse. Cheap, easy to replace. The same thing happened on my VillaWare waffle iron. I replaced it, and it’s been working for years.

In this case, the fuse is an SEFUSE type SF240E. I bought five on eBay, just now, for $1.01 with free shipping.

You have to take the top half of the appliance apart to get the bottom half apart. The fuse is inside a woven heat jacket, under a clip, on the red wire. Here’s what it looks like.

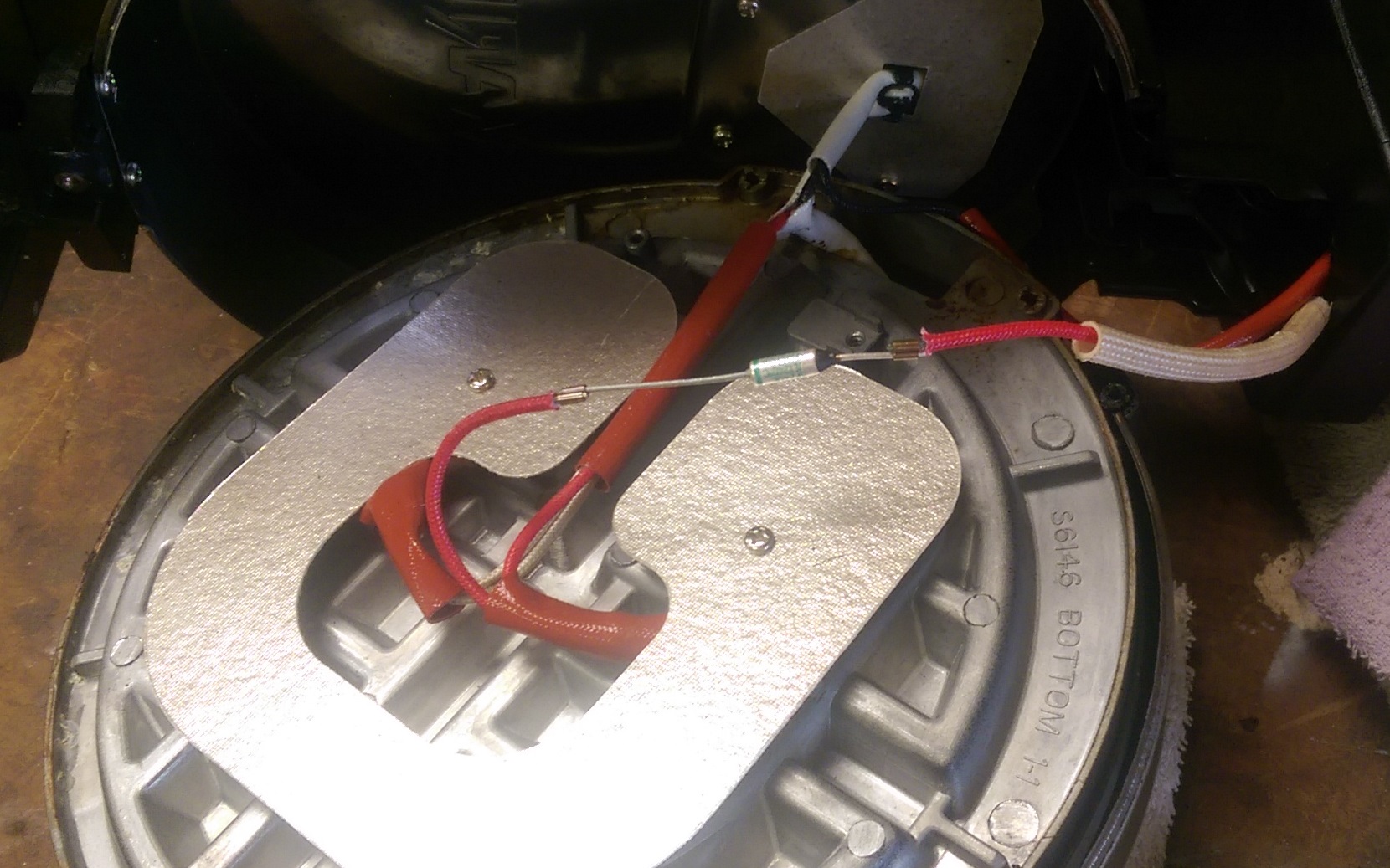

IMAG0910

It’s a half-hour job. That’s $100 an hour. I can live with that.

Did you fix something today? Tell me about it in the comments!

0

Pedal to the metal

The pedal on our 17-year-old trash compactor came loose yesterday, a consequence of a shoulder screw having worn through sheet metal at the bottom of the drawer.

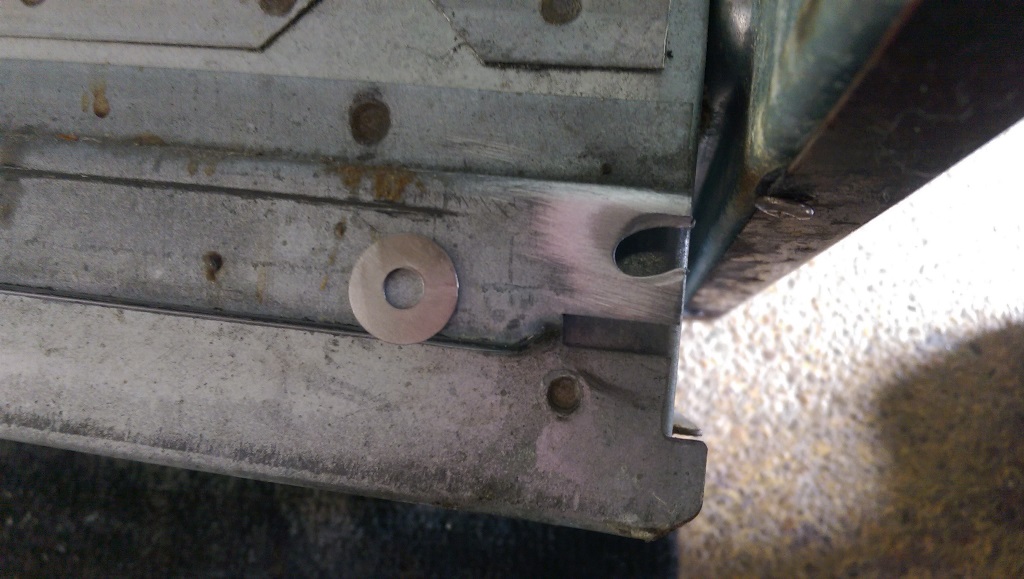

IMAG0898

Only one side had broken out, but both needed reinforcing. I found steel washers in my parts bin, ground the plating off, drilled them out to spec and applied an abrasive disk to the sheet metal.

Since the drawer is galvanized, I worked outside. I also drank a glass of milk before starting, a traditional welder’s precaution against zinc poisoning. I have no idea if it works, but welder’s manuals still advise the practice.

Here’s the repair after dressing with a grinder. I used a DHC 2000 gas torch, oxy-acetylene, a #0 tip and a stick of clothes hanger wire for filler rod.

IMAG0897

Mind you, I undertook this project knowing the outcome was uncertain. Unknown alloys, dirty metal, a little too windy outside to be gas welding … blah blah.

But, a lifetime of skills development and the willingness to fix things instead of replacing them has paid off. Even if this project had gone south, I’m still ahead.

You can do this, and things like this. All you have to do is try.

 Are you inspired? Do you have a similar story to tell?

Put it in the comments!

0
